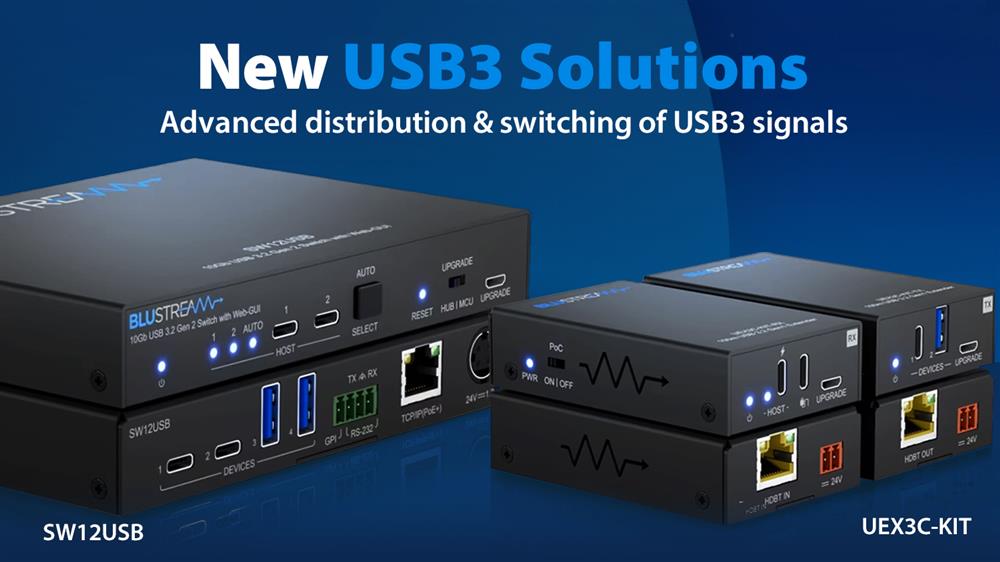

Innovative USB3 distribution solutions
We are pleased to announce the launch of two new USB3 solutions. The latest standards for USB have increased bandwidth creating fresh challenges for AV integrators. Our latest USB3 devices enable our partners the ability to distribute and switch USB-C data signals with ease.
The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 3.2 Gen1 signals up to 100m over a single CAT cable. The UEX3C-KIT allows up to 2 x USB devices to be connected to a single USB host with support for a transmission data bandwidth up to 5Gbps. The UEX3C-KIT is backwards compatible with USB 2.0 and 1.1 devices and provides bi-directional Power over Cable (PoC)
The SW12USB is a USB 3.2 Gen2 10Gb switcher, supporting 4 x USB devices that can be switched to 2 x USB-C host connections. The SW12USB supports auto switching between host devices using signal sense, or manually controlled via the front-panel push buttons, Web-GUI, TCP/IP, or RS-232
Contact your local Blustream distributor for more information.

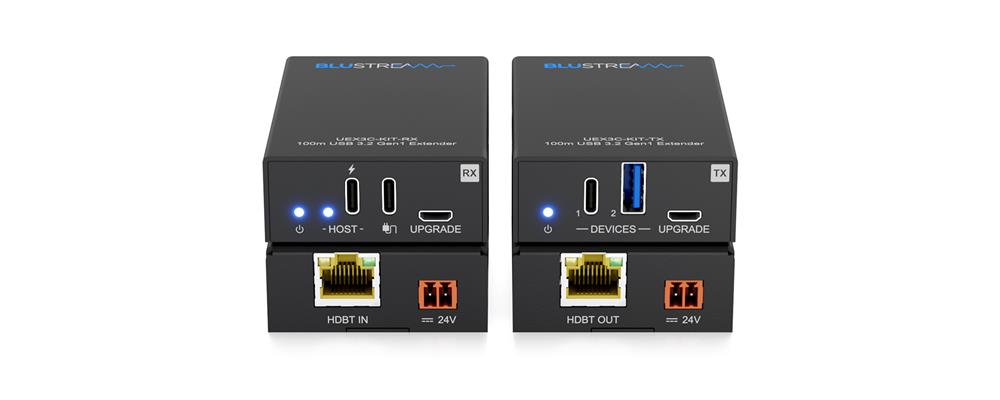

UEX3C-KIT
100m USB 3.2 Gen1 Extender
In stock.
• Supports USB 3.2 signal extension up to 100m*
• Backwards compatible with USB 2.0 & 1.1 devices
• USB3.2 Gen1 data transfer rate up to 5Gbps*
• 1x USB-C port on the receiver for connection to host device
• 1x USB-C host charging port for connection of external power supply to power host device
• 1x USB-A & 1x USB-C port on transmitter for connection to devices
• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required.
*Signal distribution bandwidth and length are subject to length of device and host USB cables and CAT cable type

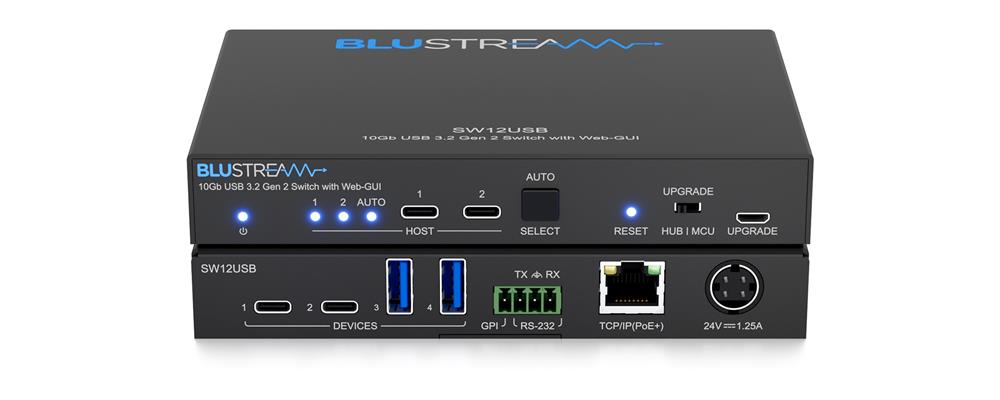

SW12USB
10Gb USB 3.2 Gen 2 Switch
Arriving in 2 weeks.
• USB 3.2 Gen2 switch allowing up to 4 x USB peripheral devices to connect to 2 x USB hosts
• Features 2 x USB-C and 2 x USB-A device inputs and 2 x USB-C hosts
• USB 3.2 Gen2 connectivity with data transfer rate up to 10Gbps
• Backwards compatible with USB 2.0 and 1.1
• Auto or manual switching
• Plug-and-play with no drivers, downloads, or software required
• Features 1 x GPI port for integration with 3rd party products
• Features 802.3at PoE+ for powering of product from PoE+ network
• Local 24v power supply input for when network switch does not support PoE+
• Web interface module for control and configuration of SW12USB
• Control via front panel buttons, RS-232, or TCP/IP
